Start with the working layout
A kitchen renovation becomes a plumbing problem when the final cabinet arrangement is decided before anyone checks the connections. A sink can fit neatly on a plan while its bowl occupies the same space as a drawer, bin system or water filter. A dishwasher may fit its opening but have no suitable path for its hoses. These clashes are easier to resolve on a drawing than after the benchtop has been cut.
Begin with how you actually use the room. Identify the main washing-up position, where dishes are scraped, the dishwasher unloading area and the drinking-water point. Decide whether a second sink solves a real task or simply adds another connection. Keeping an existing sink location may simplify the work, but only if the arrangement still suits the household. A poor layout is not automatically worth preserving because a pipe already ends there.
Give the plumber the same drawing the cabinetmaker is using. Include the date or revision reference and distinguish confirmed selections from possibilities. A note saying dishwasher on the left is inadequate when the next drawing moves it to the right. Mark the proposed sink, dishwasher, fridge and any filtered-water appliance clearly. Ask the trades to record which decisions depend on a site inspection, so a provisional route is not mistaken for an agreed installation detail.
Check the sink cabinet in three dimensions

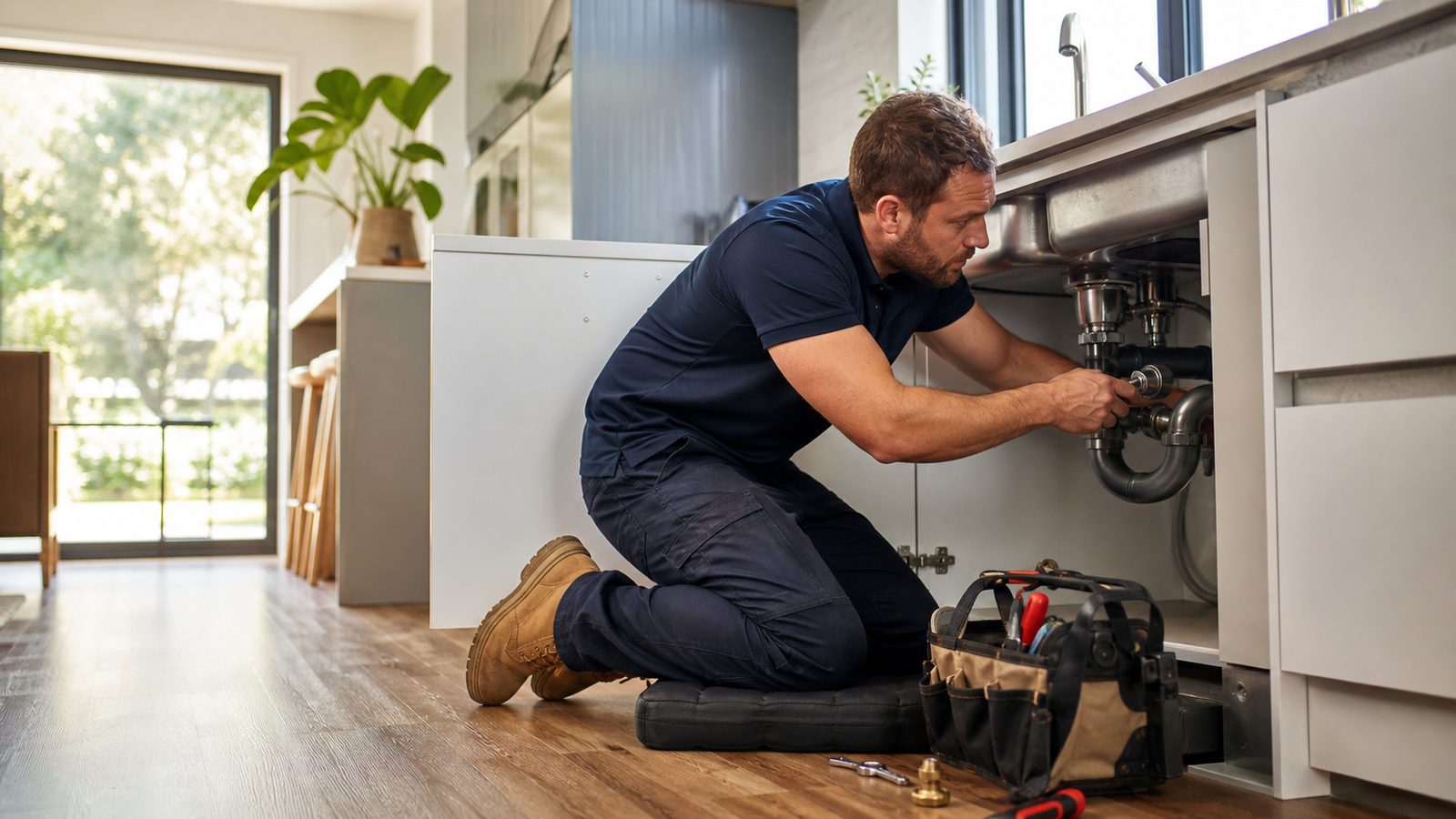

The sink cabinet is a small service area as well as storage. The bowl, waste fitting, trap, water connections and tap hoses all need space. Deep bowls can reduce the usable area below them substantially, particularly when the design includes pull-out bins. Ask for a drawing that shows the sink profile and the internal cabinet fittings together, rather than separate brochures that each assume an empty cupboard.
An undermount sink and a top-mounted sink create different coordination questions for the benchtop and cabinet team. The plumber needs the actual outlet position and connection details, while the fabricator needs the correct cut-out information. A waste outlet near the rear of a bowl may leave a different storage arrangement from one centred beneath it. Do not assume two sinks of the same overall width will connect in the same place.
Think about maintenance movement too. Someone must be able to reach and service connections without dismantling an elaborate storage system. Removable shelves may be useful where the cabinetmaker can design them deliberately. A fixed internal partition directly in front of a valve can make an otherwise tidy installation awkward. Ask which parts need a clear hand-access area and which components must be removable later. Agree the arrangement before the cabinet is manufactured, rather than asking the installer to improvise cuts through finished joinery.
Treat the dishwasher as a specified appliance
A dishwasher connection depends on the selected model, its supplied hoses and the installation instructions. An integrated machine also depends on the door panel, plinth and surrounding cabinet arrangement. A generic appliance rectangle on a kitchen plan does not answer where its connections should sit or how the appliance can be withdrawn for service. Provide the model number while there is still time to change the cabinet layout.
The installer should confirm the water supply arrangement, drainage connection, hose path and access to the isolation point. Avoid designing a route that requires hoses to be trapped behind drawers or sharply squeezed by the appliance. Leave electrical positioning to the appropriate electrical trade, coordinated with the plumbing and appliance requirements. The homeowner's role is to supply the product information and ask whether all the trades are working from it.
For a specific example of manufacturer documentation, Bosch supplies installation information through its dishwasher product service pages. Use the page for your own model rather than copying instructions from an appliance that looks similar. When comparing quotes, ask whether final appliance connection and a demonstration cycle are included. Delivery, placing the machine in its opening, attaching the decorative panel and connecting services may be different work packages.
Understand what moving the sink changes
Moving a sink along the same wall and moving it into an island can be very different jobs. The visible change may be a short distance, but the new waste route has to connect to a suitable drain. Existing floor construction, access and the path of other services can determine whether the proposal is straightforward. Ask for an inspection before treating the island position as fixed.
A kitchen on an accessible suspended floor presents different routing options from one on a concrete slab. That is a reason for the plumber and builder to examine the actual construction, not an invitation to enter a subfloor or start cutting. The plan should identify who assesses structural implications and who investigates concealed services. If the plumbing quote assumes access that the builder has not agreed to provide, the overall project remains unresolved.
Ask what happens to the old connections as well as where the new ones go. Redundant pipework, abandoned penetrations and surfaces opened for access belong in the scope. A new sink location may also lengthen the hot-water route. Discuss whether that will affect the wait at the tap before choosing the layout. The drawing should show the proposed service route at an appropriate level of detail and identify any parts that cannot be confirmed until controlled opening-up work occurs.
Reserve space for fridge water and filtration
A plumbed fridge needs more than a water point somewhere behind a large appliance. The installer should know the model, the recess arrangement and how the fridge will be moved for service. Ask where the isolation point can remain accessible and whether the planned connection allows the appliance to be withdrawn without straining the supply. Include any filter specified by the manufacturer in the discussion.
Under-sink filtration can compete with bins, cleaning storage and the sink waste. Replacement cartridges need a removal path, which may be larger than the space occupied by the cartridge in use. If a separate drinking-water tap is proposed, confirm its position with the sink and benchtop team. A last-minute tap hole is not a harmless detail when the benchtop has already been fabricated and installed.
Boiling, chilled or sparkling-water appliances have their own installation requirements and service needs. Supply the exact documentation and have the installer assess it. Do not let the kitchen plan treat these appliances as interchangeable boxes. Consider how filters will be obtained and changed, where the user controls will sit and whether the operating noise matters in an open-plan room. These are practical selection questions. They do not require the homeowner to choose plumbing fittings or design protective devices.
Sequence rough-in, benchtops and final connection
Write down the installation stages with the builder or project coordinator. The initial plumbing visit may disconnect existing fixtures and prepare new service positions. Cabinet installation, benchtop templating and fabrication then create dependencies before the final connection visit. Ask what must be installed and accessible before the plumber returns, and who confirms readiness. Booking every trade for the same morning does not remove those dependencies.
Measurements should refer to finished surfaces where that is relevant. A connection marked from a bare wall can end up in the wrong place when the final wall build-up and cabinet backing are added. Let the trades agree their reference points and record them on the current drawing. If the appliance or sink changes, circulate that change before rough-in proceeds. A replacement product with similar styling can still have different connection positions.
Plan the period without a working kitchen sink. Discuss what water services will remain available elsewhere and which days require isolation. Do not assume a temporary sink connection is included. If a temporary arrangement is needed, ask for it as an explicit item and have it professionally assessed. Protect finished work through clear responsibility: identify who makes openings in cabinets, who seals relevant penetrations and who repairs surfaces disturbed by service access.
Compare a complete scope, using a realistic example
Hypothetical example: a household wants to move the sink from a rear wall to an island, retain its existing dishwasher and add a water-connected fridge. One quote covers connecting the sink and dishwasher after the cabinets arrive. Another covers investigating the new waste route, coordinating rough-in, providing accessible isolation and returning for final connections. These descriptions address different amounts of work, even if both are labelled kitchen plumbing.
The owner should ask both contractors to separate investigation from confirmed installation. Is the drain route established? Who opens and reinstates the floor? Will the existing dishwasher hoses reach through the proposed cabinet arrangement according to its instructions? Is the fridge connection included? What happens if opening the floor reveals an obstacle? These questions make the comparison useful without relying on a headline price or assuming the larger scope is always necessary.
Include exclusions in the same conversation. Benchtop work, cabinet alterations, electrical work and decorative repairs may sit with other trades. Record them against an owner so they are not merely omitted from every quote. Ask how changes are proposed and agreed before additional work proceeds. A useful scope describes the completed arrangement and its access requirements, then explains which uncertain conditions could alter that arrangement.
Make the handover useful for the next repair
At completion, ask the installer to show you the accessible isolation points and explain which appliance each one serves. Obtain the relevant product instructions and keep the final model numbers with the kitchen documents. Photographs taken by the trades before cabinets or linings close can help explain service positions later. Ask for those records while the work is happening; they cannot be recreated accurately after everything is concealed.
Look at the completed kitchen as a maintenance space as well as a finished room. Can cabinet doors open fully? Can the dishwasher be withdrawn using the planned method? Are service points hidden behind permanently fixed storage? Ask the installer to demonstrate the agreed functions and explain any remaining follow-up work. Do not dismantle or tighten connections yourself as a way of checking the job.
Keep a short list of outstanding items separate from cosmetic preferences. A missing appliance instruction, an unexplained isolation point or an unfinished connection deserves an assigned person and next step. A change of handle colour belongs elsewhere. If a problem appears during ordinary use, record which appliance was operating and where water was visible, then contact the installer. Good handover information makes that conversation more precise and reduces the chance of the wrong trade being called first.
